Under Deck Fuel Tank 86L

Product Overview

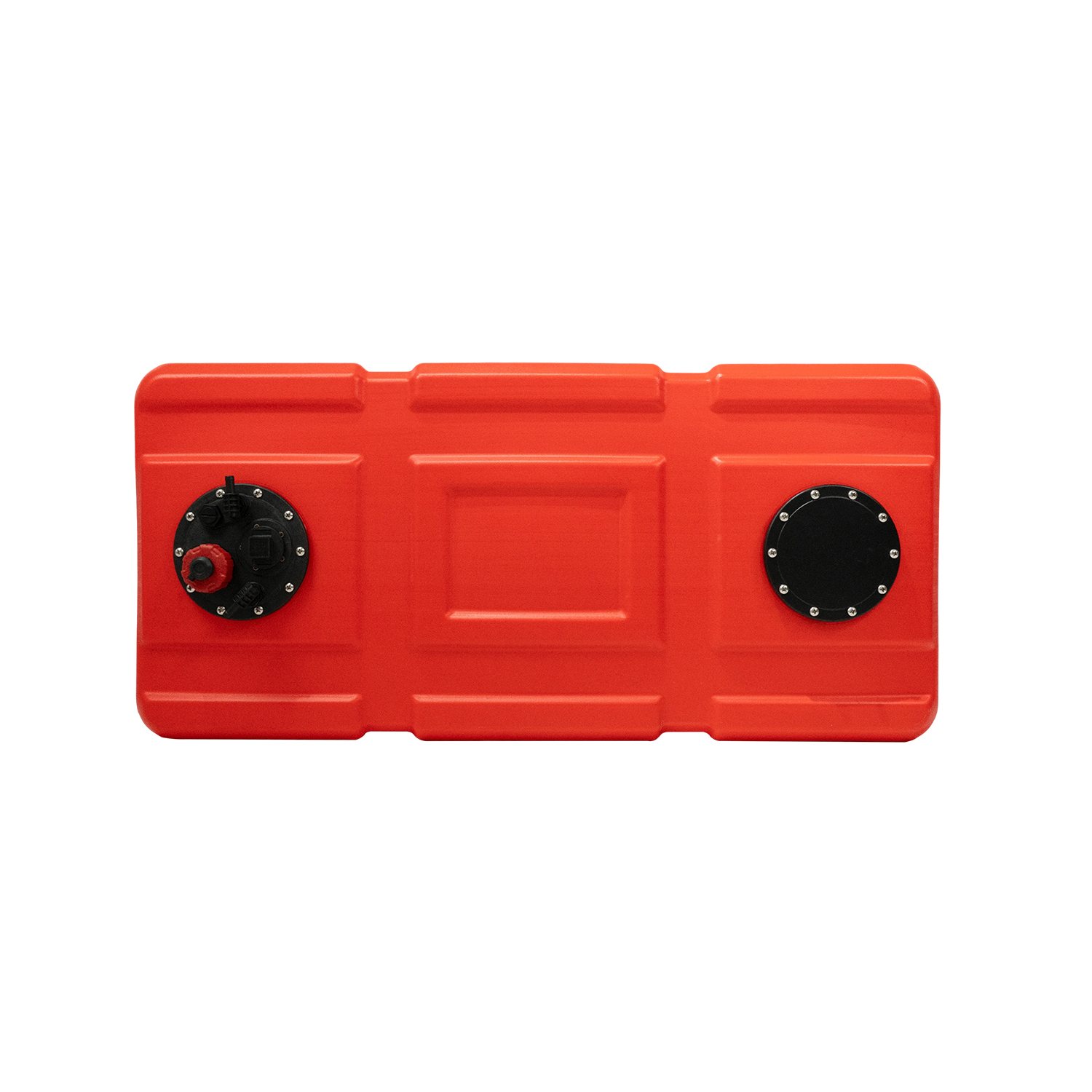

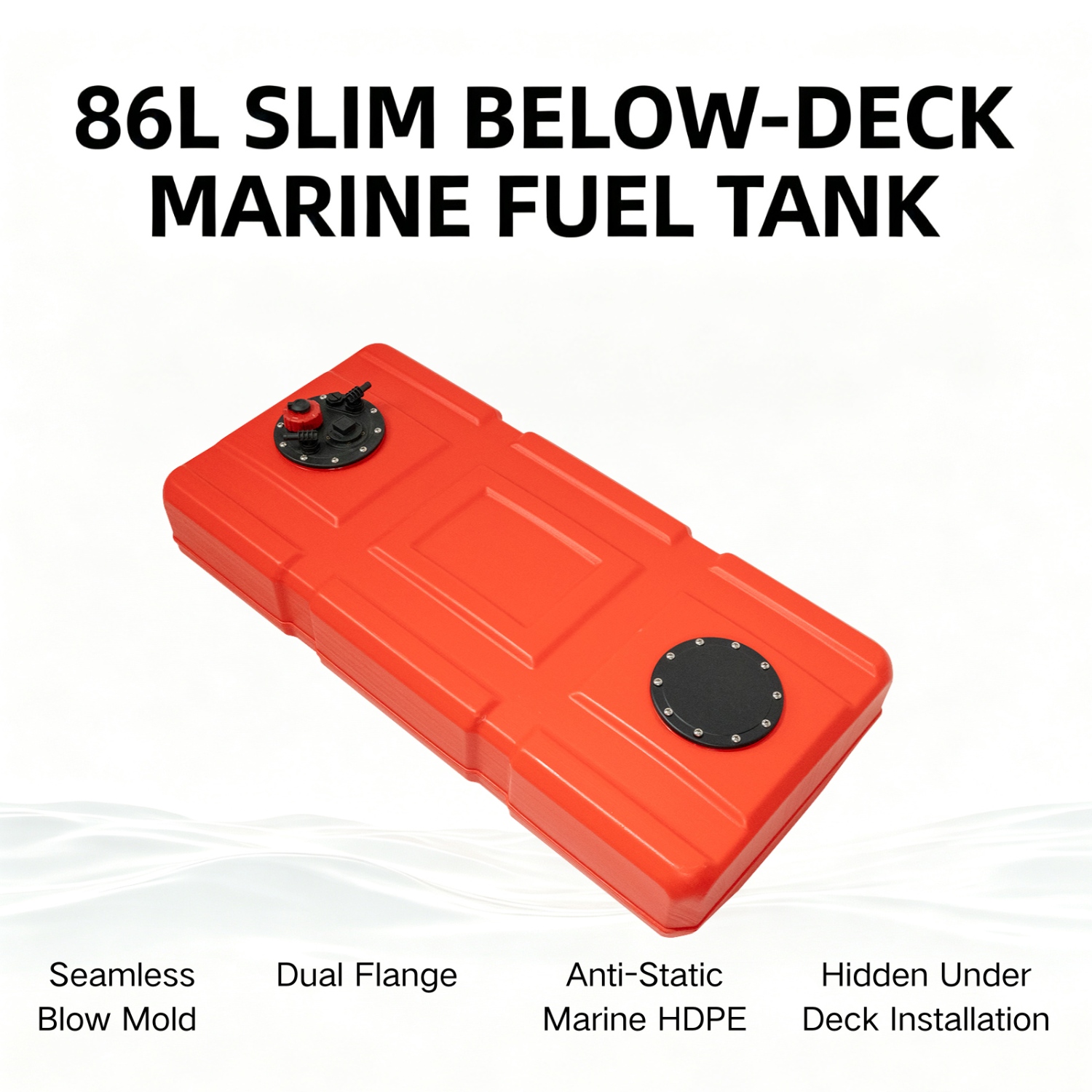

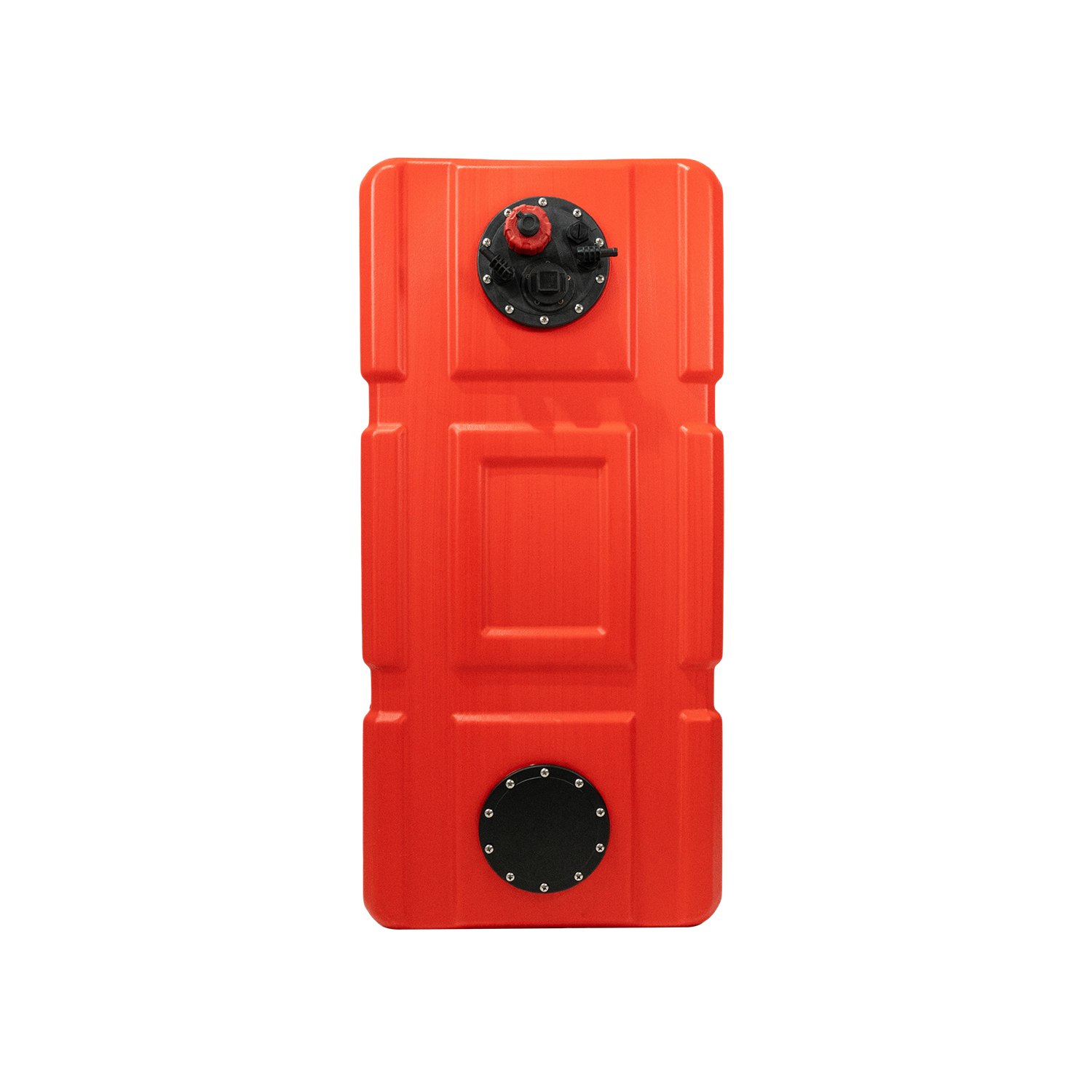

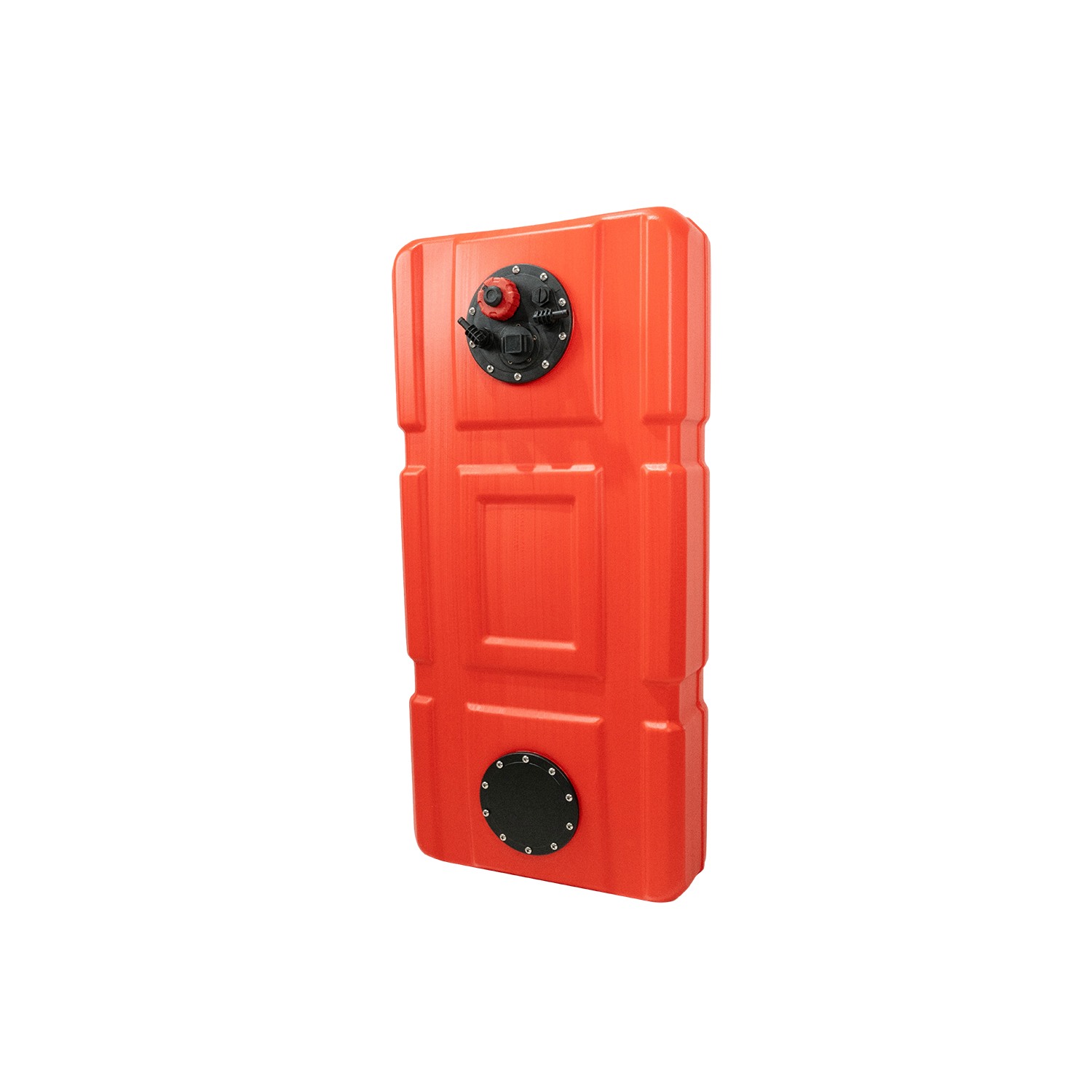

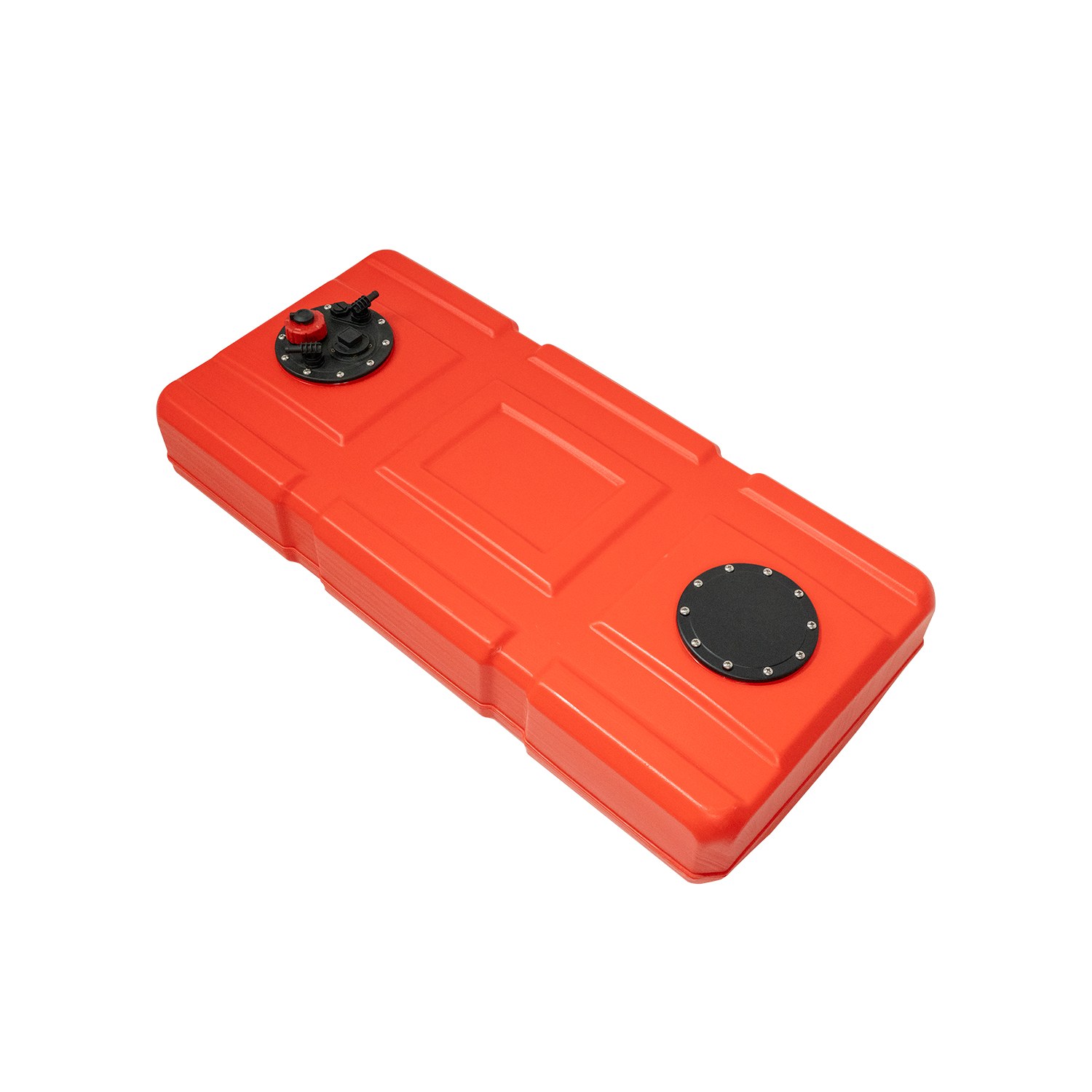

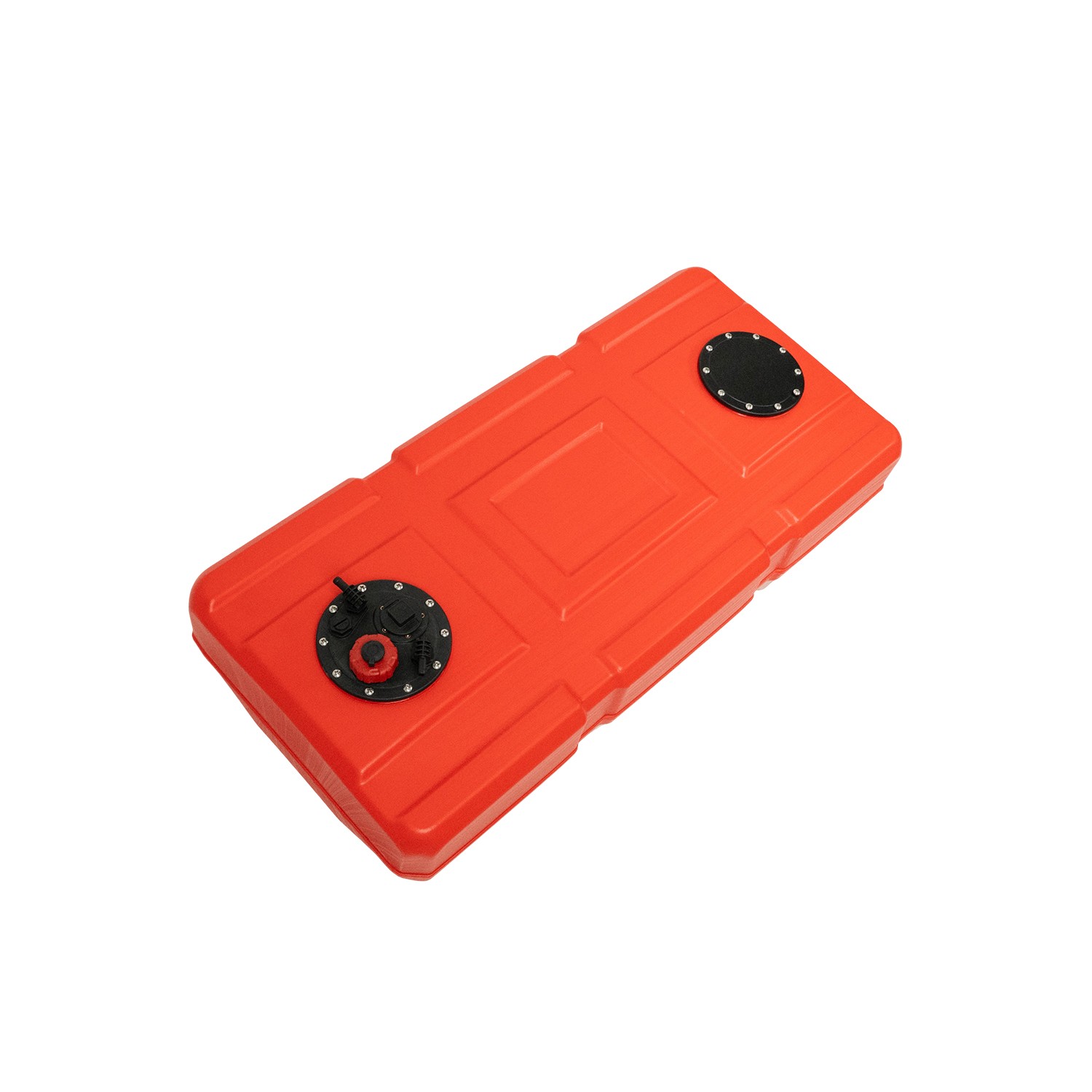

Our self-developed 86L under-deck slim fuel tank is a professional fixed hidden fuel storage container customized for vessels with limited under-deck cabin space, widely matched with inboard engines and multi-outboard marine systems. Different from vertical portable outboard tanks, this model features a flat slim low-profile rectangular outline, specially designed to fit into narrow bilge, under-seat and under-floor deck hidden installation areas without occupying valuable cabin living space. The tank is equipped with two independent full stainless steel bolt circle flanges:

1. Top front multi-port integrated manifold flange: combines fuel filling port, dual oil outlet barbs and air balance vent knob, all interfaces sealed with full rubber gaskets;

2. Rear large round maintenance hatch flange: large opening for periodic tank interior cleaning, sludge removal, and easy installation of electronic fuel level sensor. The entire tank body is integrally blow molded without any welding seams, completely eliminating hidden danger of fuel seepage and crack leakage. Full-frame thickened surrounding reinforcing ribs greatly enhance structural rigidity, allowing safe full-load fixed installation and stacked storage during transportation. Bright safety warning orange-red complies with global marine vessel fuel tank inspection regulations, widely applicable to offshore fishing boats, private cruising yachts, aquaculture work vessels, offshore speedboats and all types of inboard / 2&4-stroke outboard marine power systems.

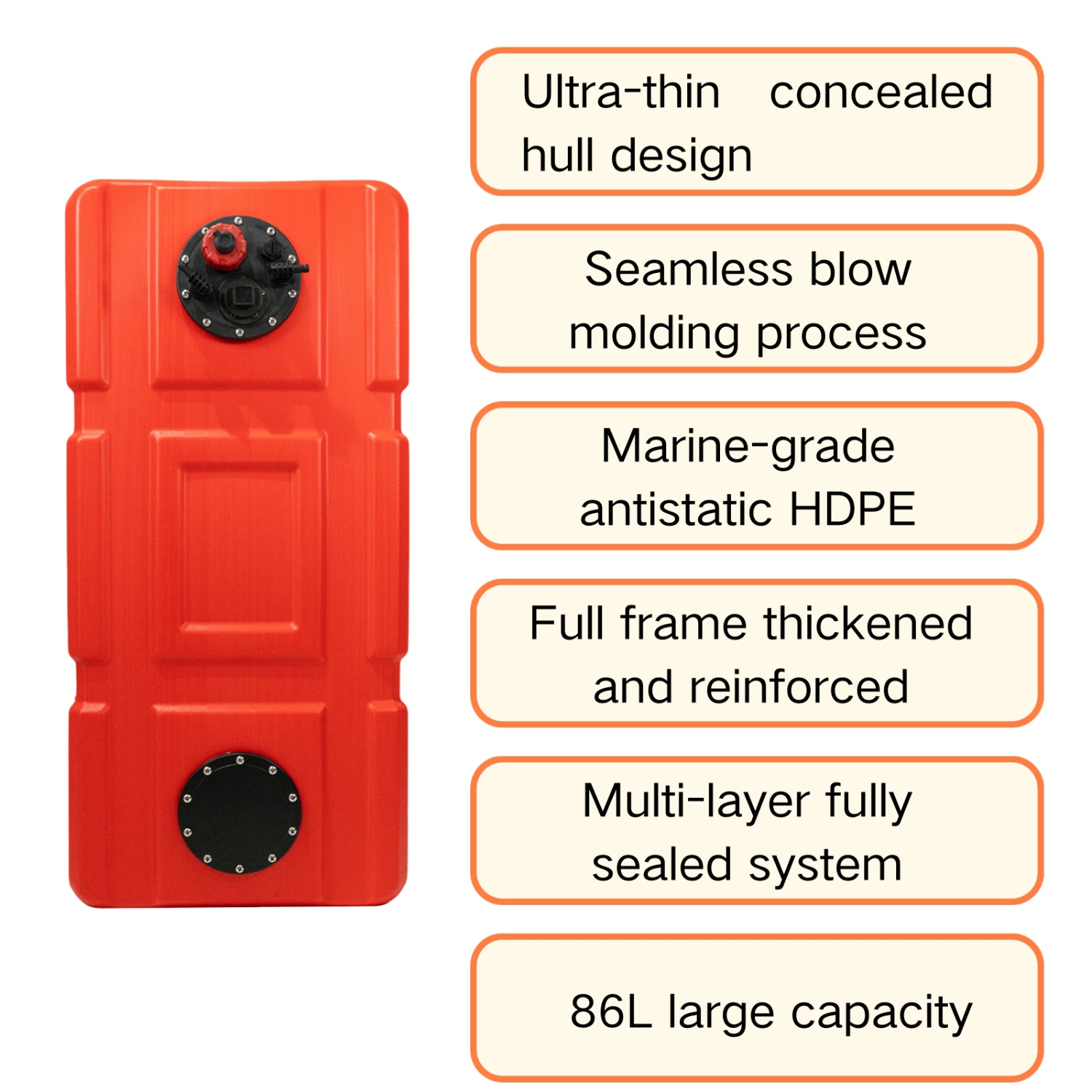

Core Competitive Advantages

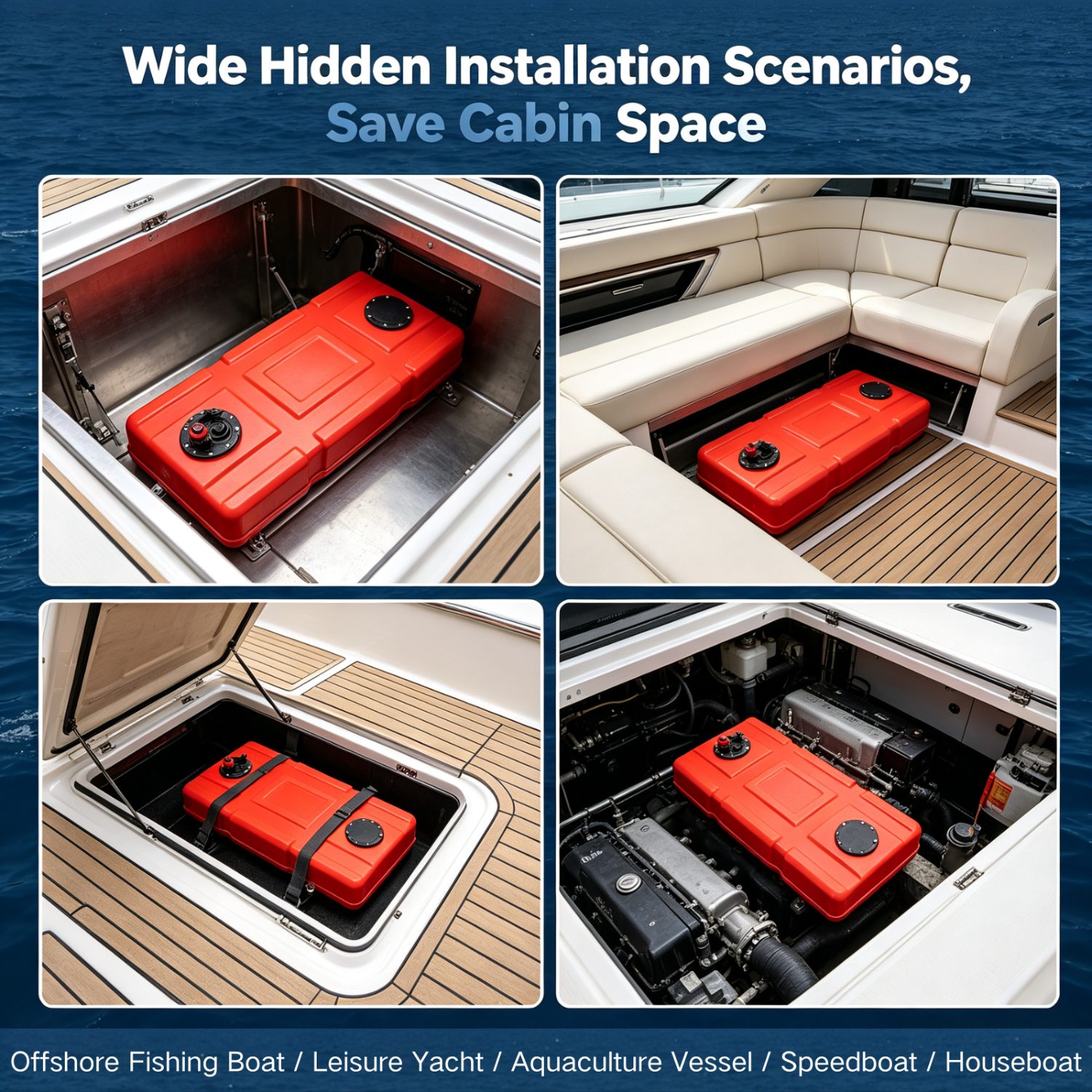

1. Slim Low-Profile Under-Deck Hidden Design, Save Cabin Space Flat thin rectangular slim outline, perfect for concealed installation under boat deck, bilge compartment, sofa base and storage floor. No protruding high vertical structure, maximize usable cabin space for yachts and fishing boats with narrow internal layout, the mainstream hidden fuel tank solution for modern leisure vessels.

2. Dual Full Stainless Steel Bolt Flange Assemblies, Multi-Function Integrated Manifold Front multi-port black flange fixed by full circle stainless steel bolts, integrates fuel fill cap, dual parallel oil outlets and air balance valve, can simultaneously supply fuel for twin outboard / dual inboard engines without extra tee joints. Rear large round maintenance hatch flange offers wide access for tank interior washing, sediment clearance and aftermarket fuel sensor mounting. Full circular rubber sealing gasket between flange and tank body ensures permanent zero leakage at assembly joints.

3. Seamless One-Piece Blow Molded Tank Body, Permanent Anti-Leak Performance Adopt advanced one-step blow molding craft, uniform thickened anti-static HDPE tank wall without splicing joints, weld lines or weak bonding positions. Balanced lightweight and ultra-high structural toughness, anti-drop, anti-impact, resistant to long-term soaking of gasoline and two-stroke mixed fuel, no crack, bulging or oil seepage under long-term marine vibration and bumping.

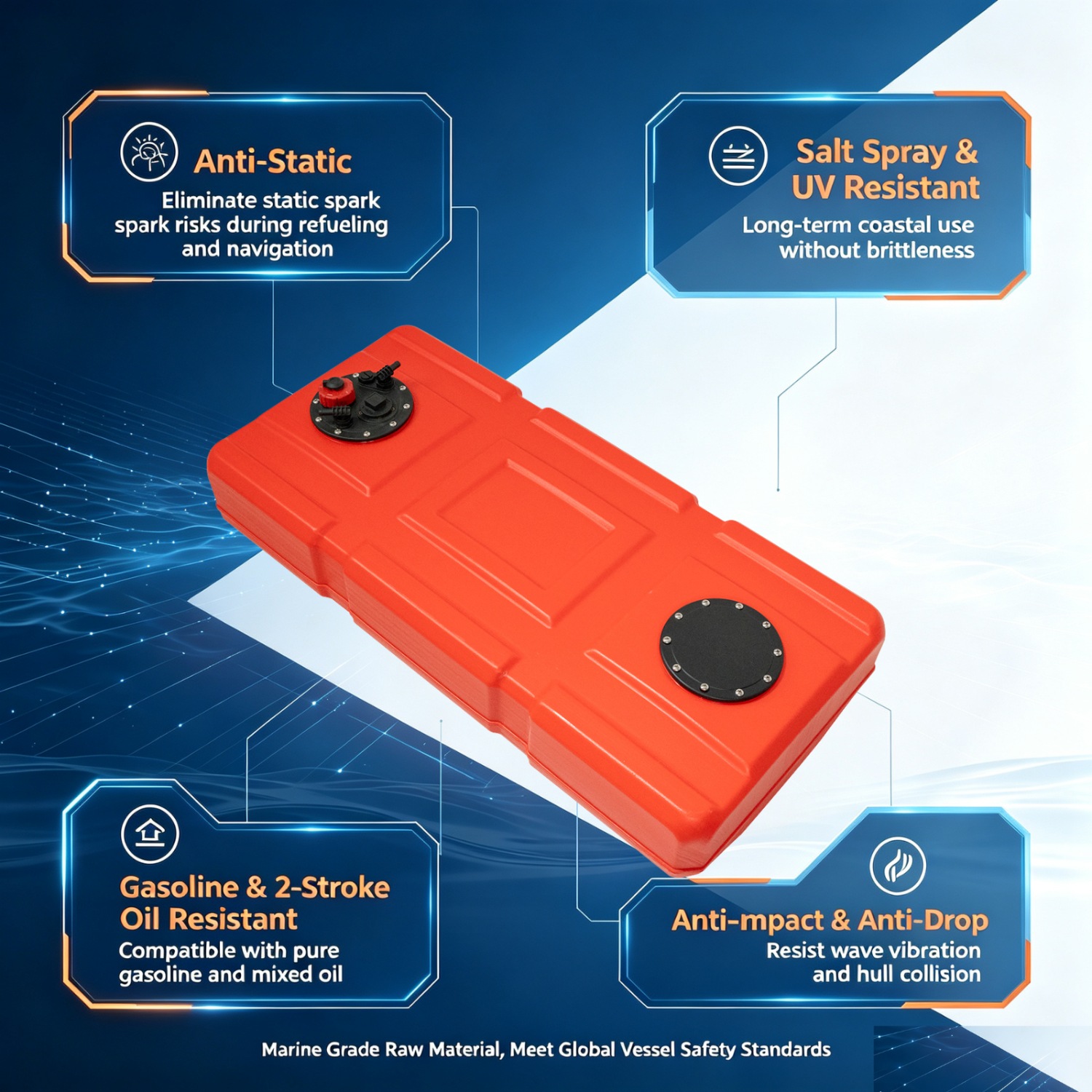

4. Marine-Grade Anti-Static HDPE Raw Material, Top Safety Standard Special anti-static high-density polyethylene material effectively eliminates static spark ignition risk during refueling and navigation. Resist sea wind, salt spray, ultraviolet ray and long-term petrol chemical corrosion, slow aging, greatly extend service life under harsh offshore marine environment.

5. Full Surrounding Thickened Reinforcing Rib Frame, Heavy-Duty Anti-Deformation Structure Multi-directional thick horizontal & vertical reinforcing ribs form a full protective frame covering the whole tank surface. Even fully filled with gasoline, the tank will not deform or bulge under long-term fixed compression, stable for permanent hidden under-deck installation and safe stacked transport.

6. Complete Multi-Layer Full Sealing System & Standard Safety Markings Balanced air vent knob automatically adjust internal tank air pressure to maintain stable, uninterrupted fuel delivery to marine engines. All flange interfaces, filling cap and oil outlet barbs are equipped with multi-layer oil-resistant rubber gaskets to block gasoline volatilization and leakage. Multi-language embossed "EXTREMELY FLAMMABLE DANGER" warning text on tank exterior fully complies with international marine fuel tank safety certification norms.

7. Large 86L Internal Volume, Reduce Frequent Refueling For Long Voyages 86L large storage capacity supports multi-day offshore fishing and cross-sea long-distance yacht cruising, drastically cut down repeated refueling frequency for medium and large vessels. Four-corner anti-slip positioning bumps enable neat stacking during warehouse storage and land transportation.

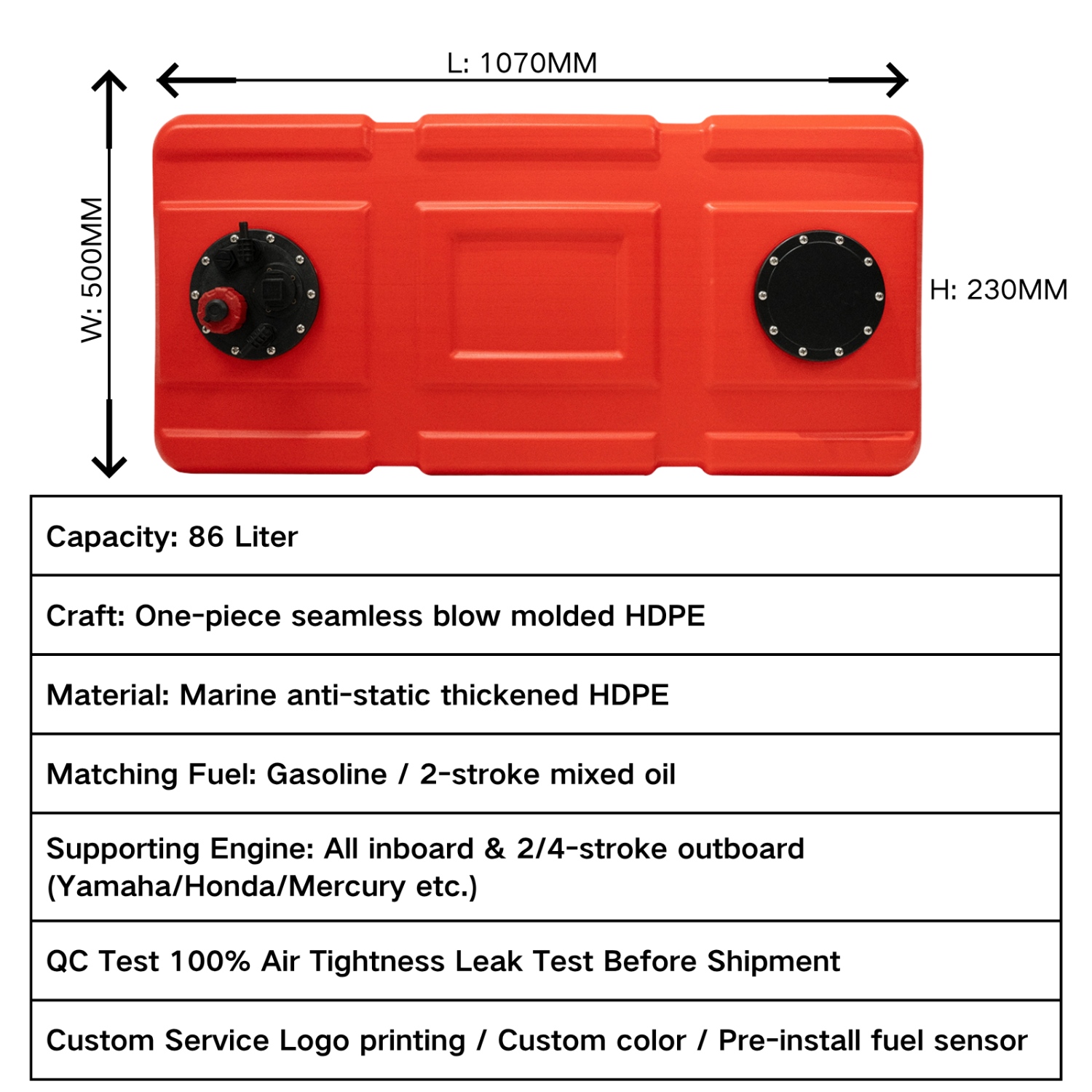

Product Specifications

Wide Application Scenarios

• Medium & large coastal offshore fishing boats, offshore aquaculture operation vessels

• Private multi-person leisure cruising yachts, cross-sea speedboats, rental charter boats

• All types of marine inboard engines and 2/4-stroke outboard motors (Yamaha, Honda, Mercury, Tohatsu etc.)

• Multi-day offshore fishing trips, long-distance sea travel, offshore marine rescue crafts

• Inland lake large fishing vessels, houseboats, pontoon leisure boats

Factory Strength & After-Sales Service

1. Complete Full-Series Marine Fuel Tank Product Line: This new 86L under-deck slim fixed fuel tank is our flagship hidden installation model, matched with 9L/12L/14L small portable outboard tanks, 24L/28L/33L medium vertical tanks, 55L single vertical tanks, 60L multi-port vertical tanks, 40L stackable tank, 57L/60L/130L wheeled trolley transfer fuel tanks to provide one-stop marine fuel storage total solutions. Stable mass production capacity, factory direct supply without middle markup.

2. Exclusive Under-Deck Slim Mold Development: Self-developed flat slim blow molding mold, unique hidden installation structure with clear market differentiation advantage for shipyards, yacht refitting distributors and marine equipment wholesalers.

3. Double Strict QC Inspection Process: Each finished tank passes full immersion air tightness leak test, plus dual flange manifold sealing matching test before packaging to eliminate all defective products.

4. Flexible Order Policy: Accept small trial sample orders & large bulk wholesale orders; support sea freight, air freight and express delivery, packed with shockproof export cartons to avoid transit damage.

5. Complete Export Documentation: Able to provide commercial invoice, packing list, product inspection report and full set customs clearance documents for buyers’ smooth import clearance.

6. Fast Customer Support: Our professional marine product foreign sales team replies all buyer inquiries within 24 working hours, provide free full series marine fuel tank catalog and best factory bulk quotation on request.
